Product Description
Need to service a wide range of OTR tires in the industry? The Esco Maxi Bead Breaker Kit tackles tough jobs with ease. It works on ALL 3-piece wheels with extended flange, a common replacement for older 5-piece wheels, and on both the front or back of the wheel without any extra parts. This kit includes a "Maxi" Bead Breaker Tool, a powerful 1/2 Gallon Hydraulic Air Pump requiring only standard 80 PSI air for operation, an 8-foot Hose Assembly, and a 6-inch Whip-Hose, Air Reducer. Plus, it's covered by a 3 Year Warranty for peace of mind.
Maxi Features:
- Fits ALL New 3-Piece Flange Wheels
- Works Front & Back (Rims)
- Easy Clamp, No Extra Parts
- Long Legs & Deep Claw Grip
- Fast Setup, Saves Time
Pump Features:
- Works on ALL OTR 3-piece wheels
- Powerful 1/2 Gallon Hydraulic Pump
- Quiet Pumping with Air Exhaust Muffler
- Clean Air & Oil with Inlet Filters
- Durable & Lightweight for Portability
- Foot Pedal for Hands-Free Operation
- Extended Life with Corrosion Resistant Build
- Mountable Feet for Various Applications
- Fluid Level Dip Stick for Easy Checking
- 10,000 PSI for Hydraulic Equipment
Specs:
Bead BreakerRam Tonnage: 13.8 Tons
Stroke: 4in (102 mm)
Maximum Pressure: 10,000 PSI
Length: 18in (457 mm)
Height: 12in (305 mm)
Weight: 38 lbs (17 kg)
Pump
Hydraulic Pressure: 10,000 PSI
Usable Oil Capacity: 135 cu. in.
Output Flow Rate (No Load): 80.5 cu. in. per minute
Output Flow Rate (Load): 12.8 cu. in. per minute
Air Pressure Range: 40-170 psi
Air Consumption: 24 scfm
Valve Function: Increase Hydraulic Fluid Pressure / Release Hydraulic Fluid Pressure
Sound Level: 85 dbBa
Reservoir Material: Aluminum
Air Inlet Thread Size: 1/4in-18 NPT
Hydraulic Hose Inlet Thread Size: 3/8in-18 NPTF
Product Dimensions (LxWxH): 12.5in x 5.75in x 8in
Packaging Dimensions (LxWxH): 15in x 7in x 8.5in
Bottom Plate Screw Hole Size: 3/8in
Bottom Plate Length (from hole center): 11.73in
Bottom Plate Width (from hole center): 4.33in
Weight: 22 lbs
Warranty: 3 Year
Hose Kit
Length: 8ft (8ft Hose with 3/8in 18 Male Ends)
Weight: 5 lbs. (2.2 kg)
Air reducer
Diameter: 15/16in (24 mm)
Working Air Pressure: 110 PSI
Air Inlet Size: 1/4in NPT
Weight: 1 lb (0.5 kg)
Similar Kits
10233 (10592 pump)
10826 (10875 pump)
10841 (10877 pump)
Ref Name
Maxi Bead Breaker Kit
OTR Bead Breaker Kit
Application:
3 Pieces Rim w/ Extended FlangeOTR Tires
Includes:

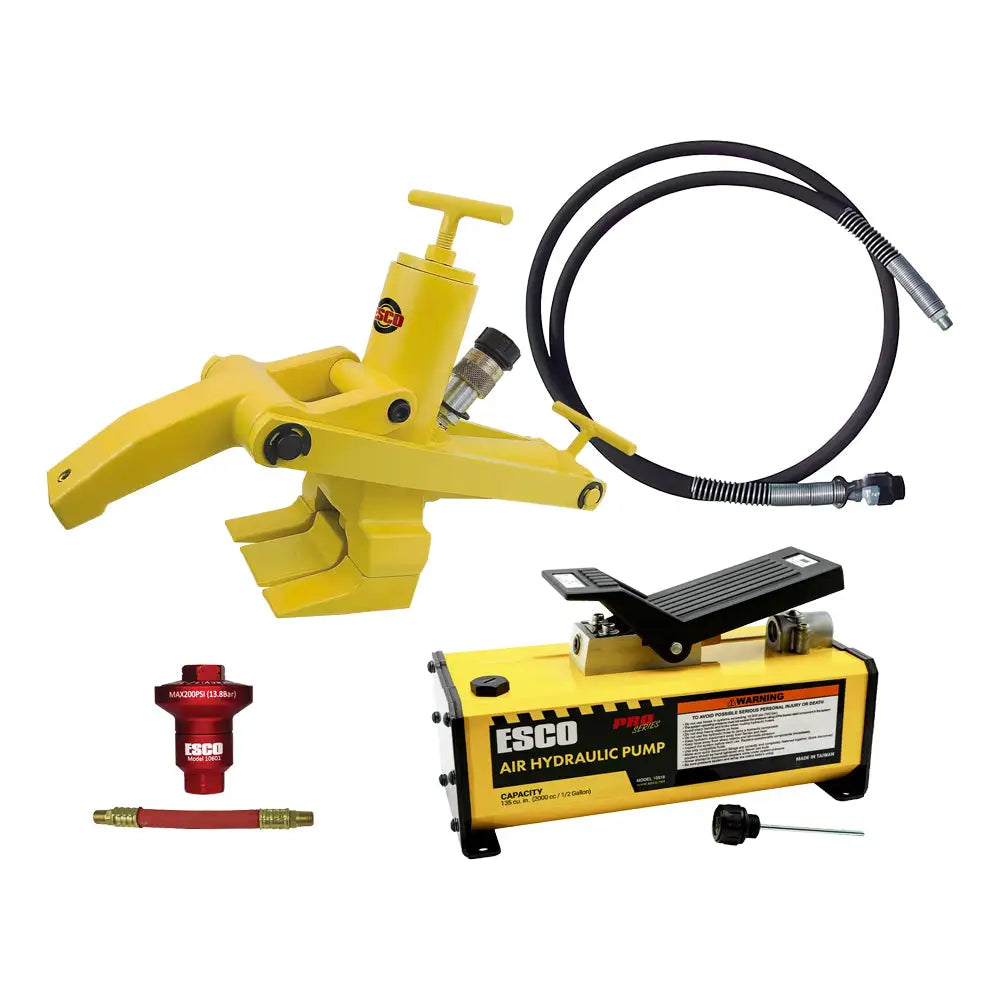

1 x 10102 - “Maxi" Bread Breaker Tool1 x 10518 - 1/2 Gallon Hydraulic Air Pump
1 x 10604 - 8 ft Hose assembly with Hose Coupler
1 x 10601K - 6 in Whip-Hose, Air Reducer
