ESCO 10518 1/2 Gallon Air Hydraulic Pump with Free Air Reducer - Perfect for Automotive Repair, Industrial Maintenance & Heavy Equipment Servicing
$373.97 $679.95
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:21 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:70192278
Guranteed safe checkout
Product Description

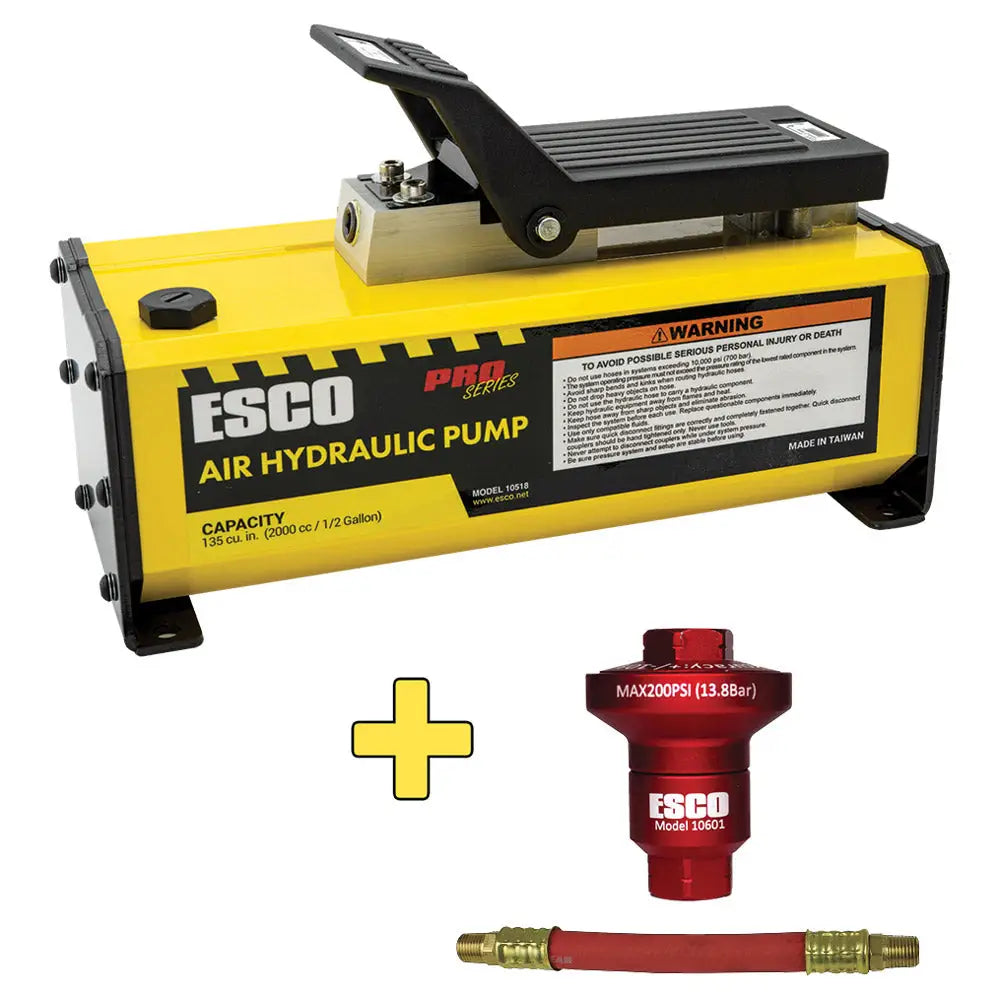

FREE 10601-K inline pressure regulator when purchasing an ESCO 10518 1/2 Gallon Air Hydraulic Pump.
ESCO 10518, part of the Pro Series 1/2 gallon air hydraulic pump, is specifically designed for automotive, light truck, and heavy-duty applications. More Info
ESCO 10601K Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure received by the hydraulic pump, which is then used to power all ESCO Hydraulic Tools. More Info
ESC-10518
Hydraulic Pressure Rating: 10,000 PSI
Usable Oil Capacity (Cubic In.): 135 cu. in.
Output Flow Rate No Load: 80.5 cu. in.
Output Flow Rate Load: 12.8 cu. in.
Air Pressure Range: 40-170 psi
Air Consumption (scfm): 24 scfm
Valve Function: Increase Hydraulic Fluid Pressure, Release Hydraulic Fluid Pressure
Sound Level (dBa): 85 dBa
Reservoir Material: Aluminum
Air Inlet: 1/4in-18 NPT
Hydraulic Hose Inlet: 3/8in-18 NPTF
Dimensions (Product): 12.5 (L) x 5.75 (W) x 8 (H) in.
Dimensions (Packaging): 15 (L) x 7 (W) x 8.5 (H) in.
Bottom Plate Screw Hole Size (4): 3/8 in.
Bottom Plate Length (from hole center): ~11.73 in.
Bottom Plate Width (from hole center): ~4.33 in.
Weight: 22 lbs.
Warranty: 3-Year Extended Warranty
ESC-10601K
Desc: Air Reducer for Air/Hydraulic Pump
Diameter: 15/16in / 24mm
Working Air Pressure: 110 PSI
Air Inlet Size: 1/4in NPT
Weight: 1 lb. / 0.5kg
Hydraulic Pressure Rating: 10,000 PSI
Usable Oil Capacity (Cubic In.): 135 cu. in.
Output Flow Rate No Load: 80.5 cu. in.
Output Flow Rate Load: 12.8 cu. in.
Air Pressure Range: 40-170 psi
Air Consumption (scfm): 24 scfm
Valve Function: Increase Hydraulic Fluid Pressure, Release Hydraulic Fluid Pressure
Sound Level (dBa): 85 dBa
Reservoir Material: Aluminum
Air Inlet: 1/4in-18 NPT
Hydraulic Hose Inlet: 3/8in-18 NPTF
Dimensions (Product): 12.5 (L) x 5.75 (W) x 8 (H) in.
Dimensions (Packaging): 15 (L) x 7 (W) x 8.5 (H) in.
Bottom Plate Screw Hole Size (4): 3/8 in.
Bottom Plate Length (from hole center): ~11.73 in.
Bottom Plate Width (from hole center): ~4.33 in.
Weight: 22 lbs.
Warranty: 3-Year Extended Warranty
ESC-10601K
Desc: Air Reducer for Air/Hydraulic Pump
Diameter: 15/16in / 24mm
Working Air Pressure: 110 PSI
Air Inlet Size: 1/4in NPT
Weight: 1 lb. / 0.5kg
