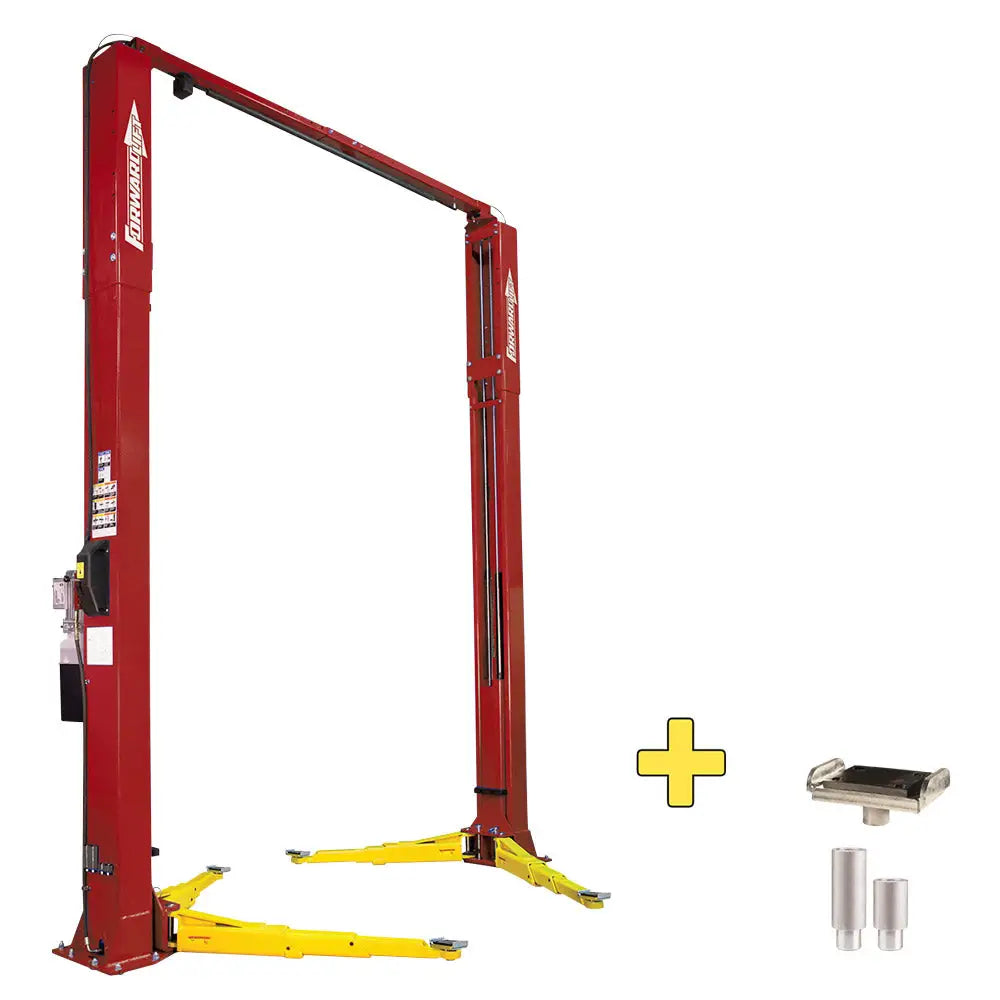

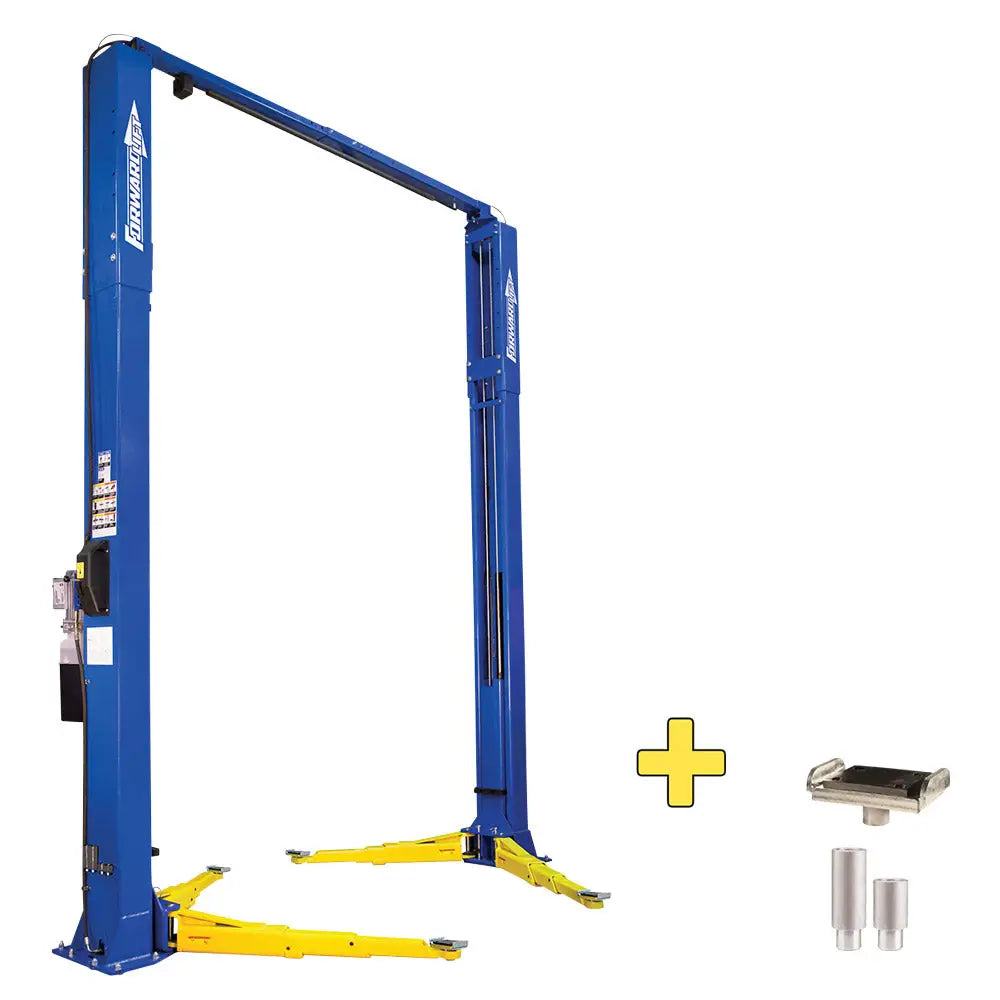

Forward Lift I12PRO 12K Symmetric 2 Post Car Lift - Heavy Duty Vehicle Hoist for Auto Repair Shops & Home Garages - Perfect for Lifting Trucks, SUVs, and Sedans
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:20 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:58384833
Product Description
Forward’s I12PRO two-post lift is gold certified with a 12,000-pound capacity for raising most passenger cars, trucks, and vans. Hydraulic cylinders increase lift performance and minimize downtime with two heavy-duty pushes. Cylinders are located in each column concealed within the carriage itself. A durable powder coat finish provides exceptional protection from the wear a shop will see over the years. Forward’s spring-operated arm restraints are just one feature that keeps these heavy-duty lift arms constantly performing at their peak performance.
Features:
- Hydraulic cylinders in each column
- Full Stroke
- The cylinder rod concealed inside the carriage
- 75-3/4″ Rise | 80-3/4″ (With 5″ adapter extensions)
- 3 Stage arm design
- Door Bumper Kits Standard
- Overhead cable equalization
- Single Point lock release
- Large rubber-padded drop-in adapters with extra height extensions (1.75″, 3.5″ and 5″) are standard.
- Spring operated arm restraints, disengage at floor level
- Padded overhead height limit switch bar
- Durable powder coat finish
Specs:
Capacity: 12,000 lbs. (5443kg)Maximum Rise with 5in Extension 80-3/4in (2051mm)
Overall Width: 140in (3556mm) or optional 146in (3708mm)
Drive-through clearance: 108-3/4in (2762mm) or optional 102-3/4in (2610mm)
Front Reach (Min/Max): 27-3/4in / 59in (705mm/1460mm)
Rear Reach (Min/Max): 27-3/4in / 59in (705mm/1460mm)
- Min/Max: 4-3/4in (121mm) w/o extension
Adapter Height: 9-3/4in (248mm) w/5in extension
Width inside Columns:
- 120-7/8in (3070mm) Adjustable
- 114-7/8in (2918mm) Standard
Voltage/Amps: 208V/230V, 17 amps
Motor/Phase:
- 1ph/2HP/50Hz
- 1ph/2HP/60Hz
Ceiling Height required: 168in (4267mm)
Speed of Rising: 60 seconds
I12N300 (Standard)
Overall Height: 166in (4216mm)
Overhead Switch Height: 160-1/8in (4067mm) Standard
I12N301 (Extended)
Overall Height: 178in (4521mm) Max. Height
Overhead Switch Height: 172-1/8in (4524mm) Extended
I12N302
Overall Height: 154in (3912mm)
Overhead Switch Height: 148-1/8in (3762mm)
I12N303
Overall Height: 143in (3632mm)
Overhead Switch Height: 137-1/8in (3483mm)
Includes:
4 x Low-profile Drop-in AdaptersAdapter Extensions:
- 1.75in
- 3.5in
- 5in
