Forward Lift F12 12K Symmetric 2 Post Car Lift - ALI Certified for Safety - Light Duty Automotive Lift for Home Garage & Auto Repair Shops
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:84420599
Product Description

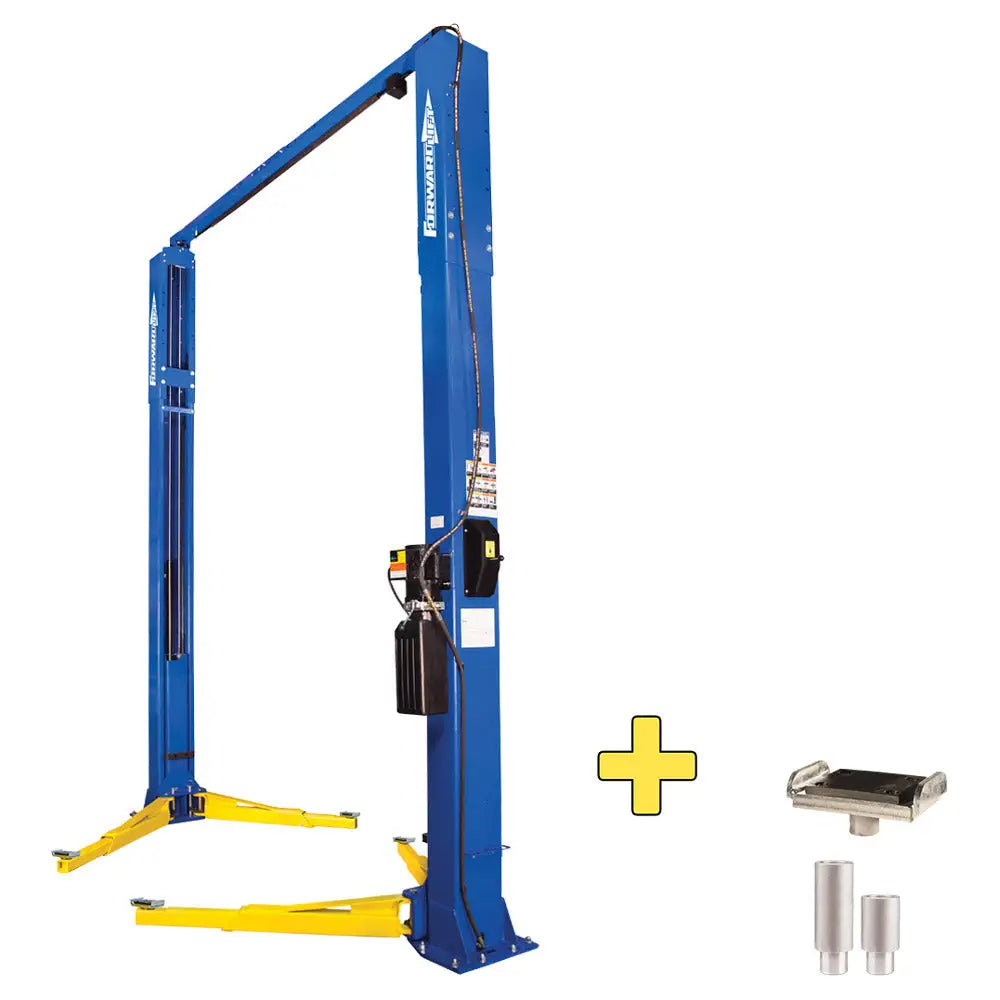

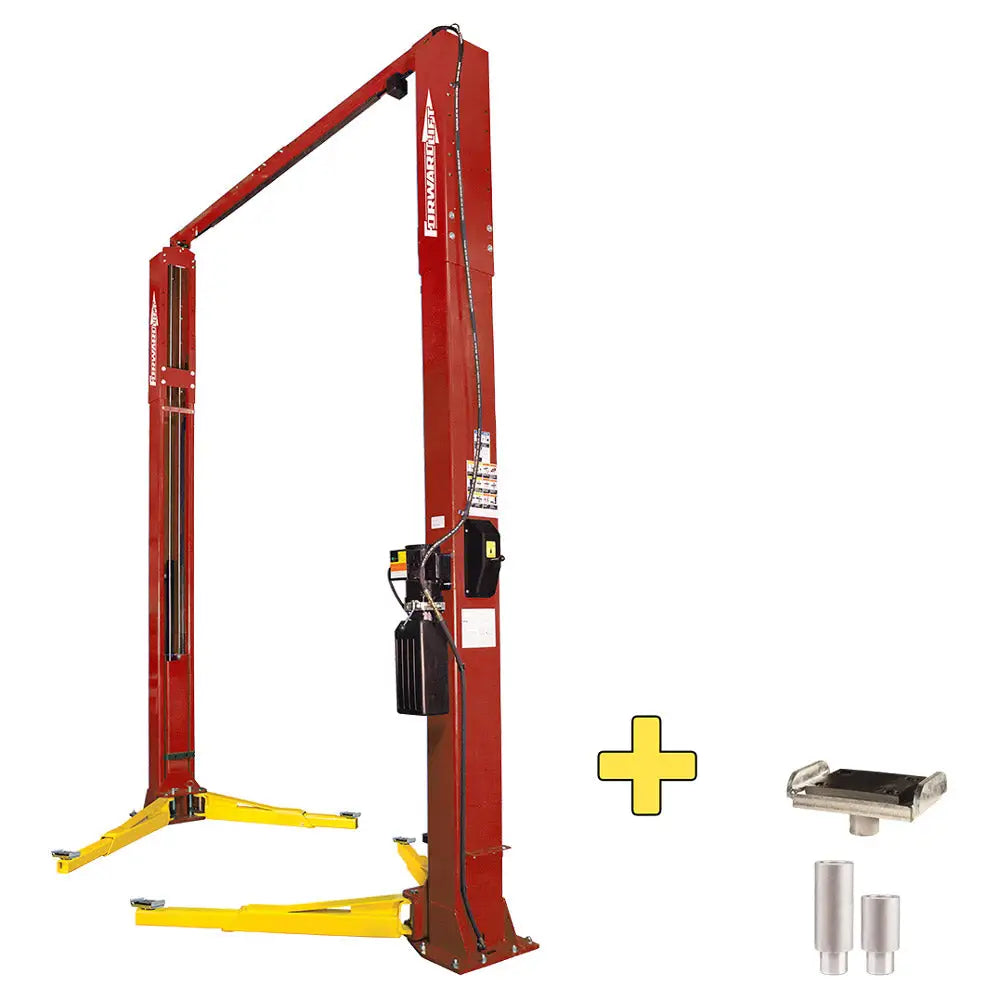

Forward’s F12 two-post lift is gold certified with a 12,000-pound capacity for raising most passenger cars, trucks, and vans. Two heavy-duty push hydraulic cylinders are designed to increase lift performance and minimize downtime, and cylinders are located in each column concealed within the carriage itself. A durable powder coat finish provides exceptional protection from the wear a shop will see over the years. Forward’s spring-operated arm restraints are just one feature that keeps these heavy-duty lift arms constantly performing at their peak performance.
Features:
- Hydraulic cylinders in each column
- Full Stroke
- The cylinder rod concealed inside the carriage
- 72-1/2″ Rise | 77-1/2″ Rise (With 5″ adapter extensions)
- 2 Stage Arm Design
- Overhead cable equalization
- Single Point lock release
- Large rubber-padded swivel adapters with extra height extensions (3.5″ and 5″) are standard
- Spring operated arm restraints, disengage at floor level
- 2-stage front and rear arms
- Durable powder coat finish
- ALI Certified
Specs:
Capacity: 12,000 lbs.Maximum Rise: 77-1/2in (With 5in adapter extension)
Overall Width:
- 140in (Standard)
- 146in
Drive Through Clearance:
Front Arm Reach (Min./Max.): 35in/ 54in
Rear Arm Reach (Min./Max.): 35in/ 54in
Min./Max. Adapter Height:
- 4-3/4in w/ no adapter extension
- 9-3/4in w/ 5in adapter extension
Width Inside Column:
- 120-7/8in Adjustable
- 114-7/8in Standard
Voltage/Amps:
- 208/230, 12 amps
- 208/230, 16 amps
Motor/Phase**:
- 1ph*/2HP/50Hz
- 1ph*/2HP/60Hz
Ceiling Height Required: 168in (4267mm)
F12N300
Adjustable Overall Height Options: 166in (4216mm)
Overhead Switch Height Options: 160-1/8in (4067mm) Standard
F12N301
Adjustable Overall Height Options: 178in (4521mm) Max. Height
Overhead Switch Height Options: 172-1/8in (4524mm)
F12N302
Adjustable Overall Height Options: 154in (3912mm) (F12N302)
Overhead Switch Height Options: 148-1/8in (3762mm)
F12N303
Adjustable Overall Height Options: 143in (3632mm) (F12N303)
Overhead Switch Height Options: 137-1/8in (3483mm)
Application:
Vehicles TypeCars
Trucks
Vans
Businesses Type
Independent repair shops
Car dealerships
body shops
Home enthusiasts
Heavy-duty truck facilities
Adapter Includes:
4 x Low-profile Drop-in AdaptersAdapter Extensions:
- 3.5in
- 5in
