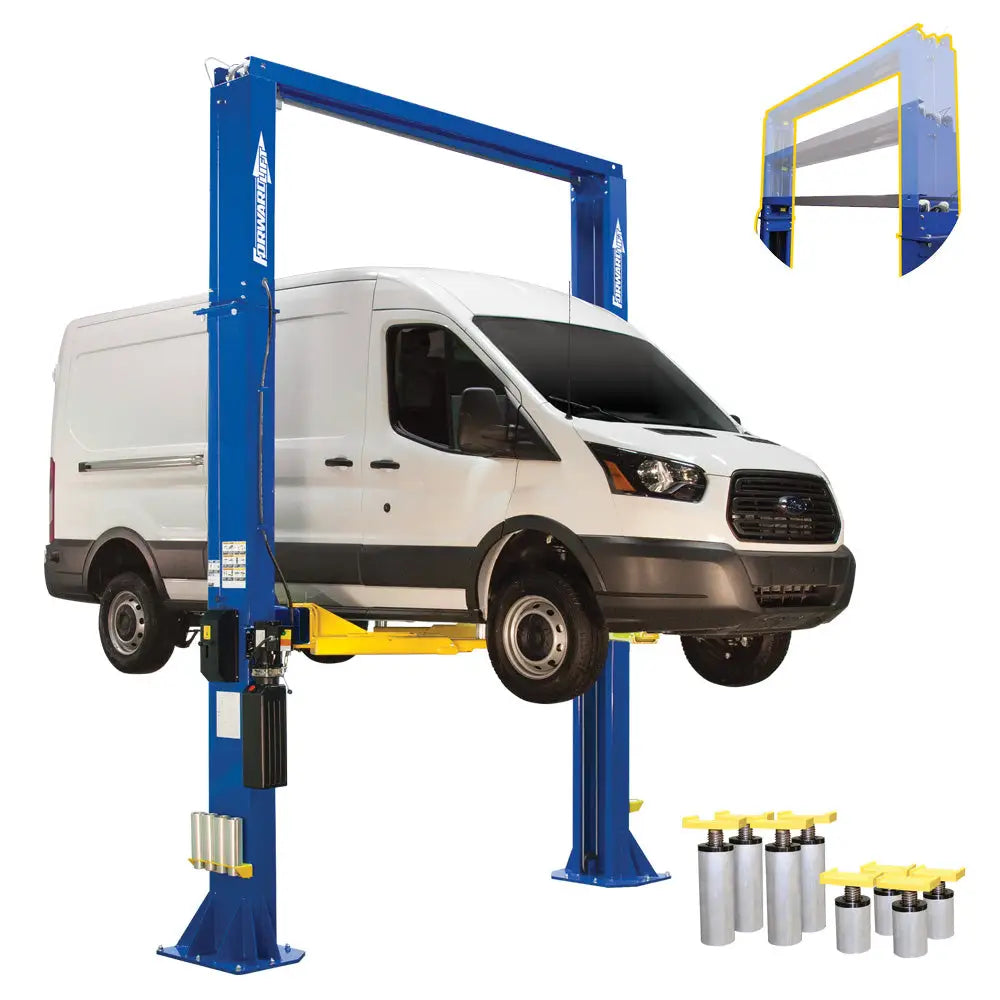

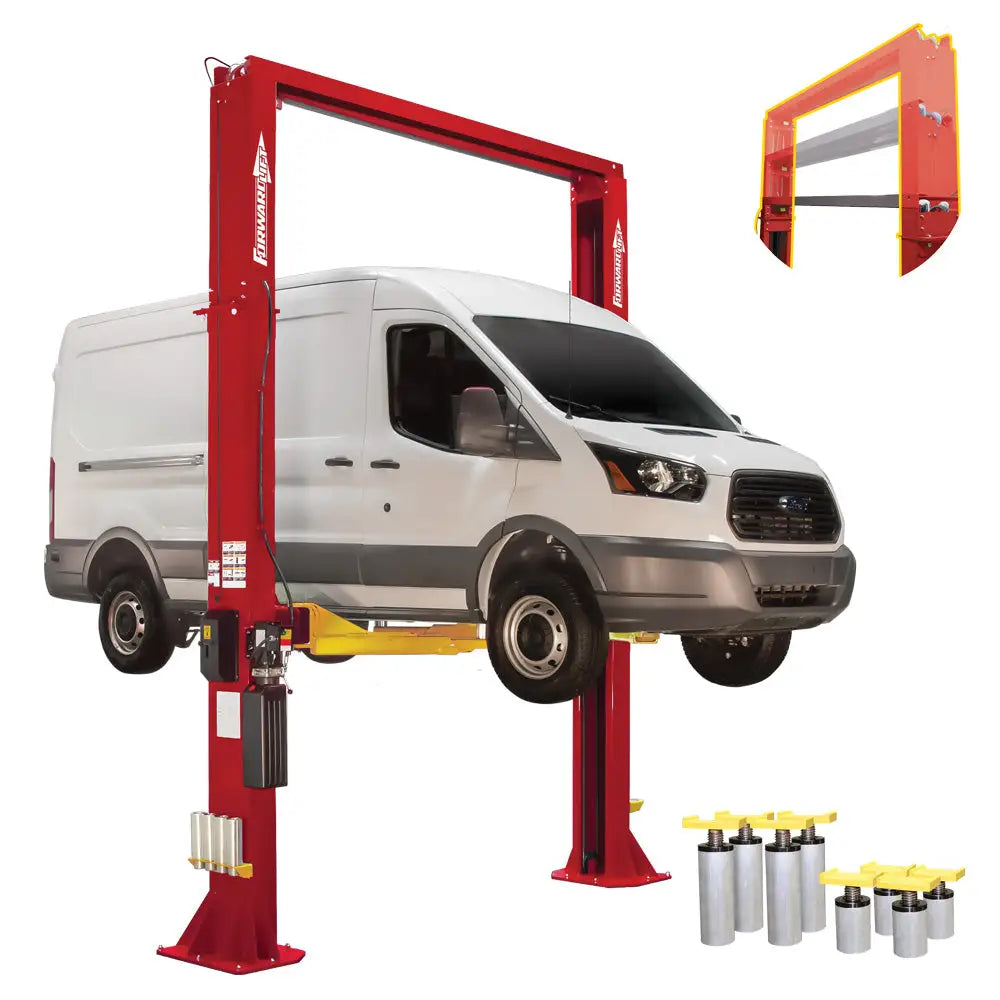

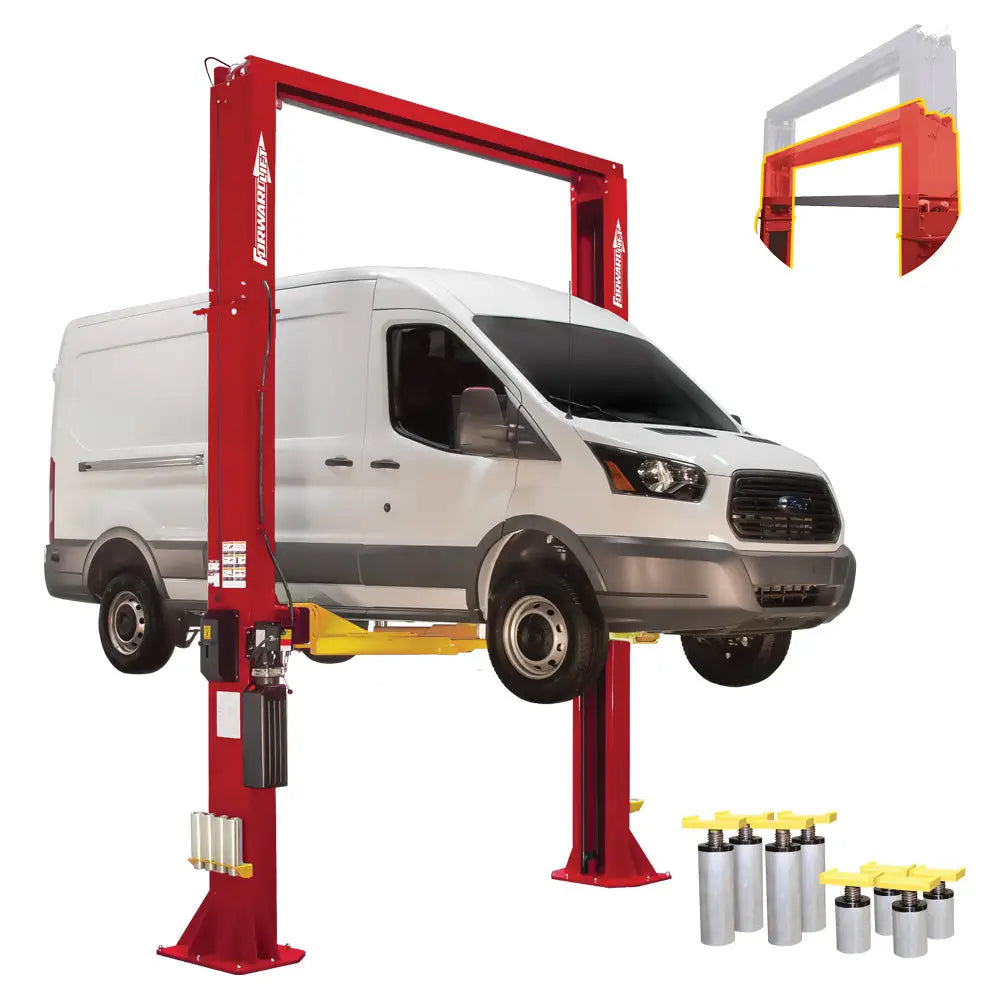

Forward DP15 15K Heavy Duty Two Post Car Lift for Auto Repair Shops & Garages - Professional Vehicle Hoist for Trucks, SUVs and Sedans
$7478.35 $13597
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:25 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:94560069
Guranteed safe checkout
Product Description
The DP15 Heavy-Duty Two-Post Lift is perfect for your shop. With a capacity of 15,000 pounds, it can handle work trucks, vans, small buses, and everything else that comes through the door. The DP15 is constructed of high-strength heavy gauge steel columns and has eight aircraft-grade aluminum truck adapter extensions. Four 5" and four 10" adapters allow you to lift a wide range of vehicles. The arms are two-stage and can easily be extended and retracted while spotting a vehicle on the floor.
Features:
- 15,000 lbs. capacity for raising most trucks and vans.
- Features symmetrical column design
- Direct-Pull Lifting - high efficiency, low maintenance technology
- Closed-loop hydraulic system - protects against hydraulic contamination
- Powder coat paint is more durable than conventional coatings
- Third-party tested and certified by ALI
- Padded shut-off bar
- Low-profile arms and truck adapters
- Single point release lock at the operations center
Low-Profile Arm Design
- Arms feature a low, 5 1/2" minimum adapter engagement height
- Two-stage with heavy-duty reinforced gusseting
- Easily extended and retracted / from 61" to 38".
Specs:
Arm Type: 2 StageTotal Capacity: 15,000 lbs. (8164kg)
Rise*: 83-1/4in (2114mm)
Overall Floor Width: 154-3/8in (3921mm)
Inside Column Width: 119-5/8in (3038mm)
Drive Through: 108-1/4in (2749mm)
Arm Reach: 38in (965mm) 61in (1549mm)
Minimum Adapter Height: 5-1/2in (139mm)
Stackable Adapter Height (Low Extension): 10-1/2in (266mm)
Stackable Adapter Height (High Extension): 15-1/2in (393mm)
Voltage*: 208/230v, 20 amps
Amps: 20
Motor: 2 HP/1Ø
Color: Red/Blue
DP15-155BL/RD
Model: Low Ceiling
Column Extensions: No Extensions
Overall Height: 154-3/4in (3930mm)
Height to Shut-Off: 147-1/4in (3735mm)
Minimum Ceiling Height: 155-3/4in (3956mm)
Ref No: DP15N000, DP15N000BL, DP15N000RD
DP15-175BL/RD
Model: Standard
Column Extensions: Standard Height
Overall Height: 175in (4445mm)
Height to Shut-Off: 167-1/4in (4250mm)
Minimum Ceiling Height: 176in (4470mm)
Ref No: DP15N001, DP15N001BL, DP15N001RD
DP15-199BL/RD
Model: Extended
Column Extensions: Extended Height
Overall Height: 199in (5054mm)
Height to Shut-Off: 191-1/4in (4860mm)
Minimum Ceiling Height: 200in (5080mm)
Ref No: DP15N002, DP15N002BL, DP15N002RD
* Specifications are subject to change without notice or liability. *Maximum lifting height within 10in adapters
* 1Ø, 3Ø, and 3Ø 600V available via special order - restrictions apply
Includes:
Low-Profile Threaded Adapter Pads4 x 5in Adapter Extensions
4 x 10in Adapter Extensions
